  • MP206-M M-type rotary table
  • ✅ Consistent Tension System

    ✅ Powered Pre-Stretch Carriage (Up to 200% Ratio)

    ✅ Intelligent Touch Screen Control

    ✅ Safety Protection Device Under Carriage

    ✅ Dual-Chain Structure Column

    ✅ M-Type Open Rotary Table

    ✅Simple man-machine interaction, easy operation for new staff

    ✅Energy-saving design, more cost-effective in long-term use

    ✅Low consumption & high efficiency, ideal for cost saving

    ✅Stable mechanical operation, low vibration and low running noise

    ✅Firm wrapping effect, prevent goods collapse, tilt and scatter in transit

    ✅Globally proven, trusted by thousands of clients

  • Contact us Whatsapp+86 18071703507
Product details Product parameters Drawing size

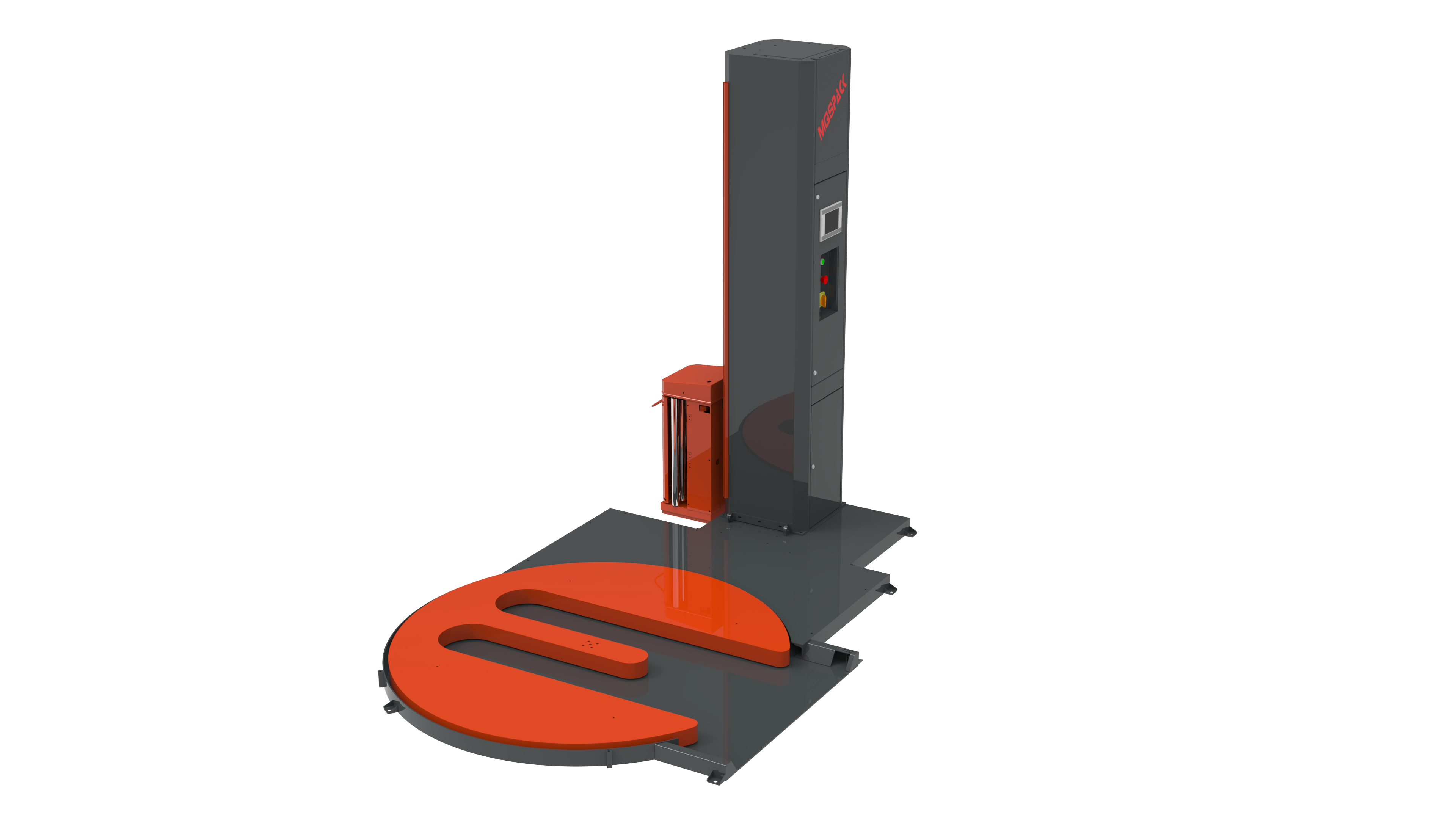

The MQSPACK MP206-M is an M-type rotary table powered pre-stretch stretch wrapper specially designed for heavy-duty palletized goods.

 Adopting an M-type open rotary table structure, it allows forklift direct in-and-out operation.

Combined with a proven consistent tension system and 200% powered pre-stretch carriage,

 it balances heavy load capacity and packaging efficiency,

making it an ideal choice for automated wrapping of heavy goods.

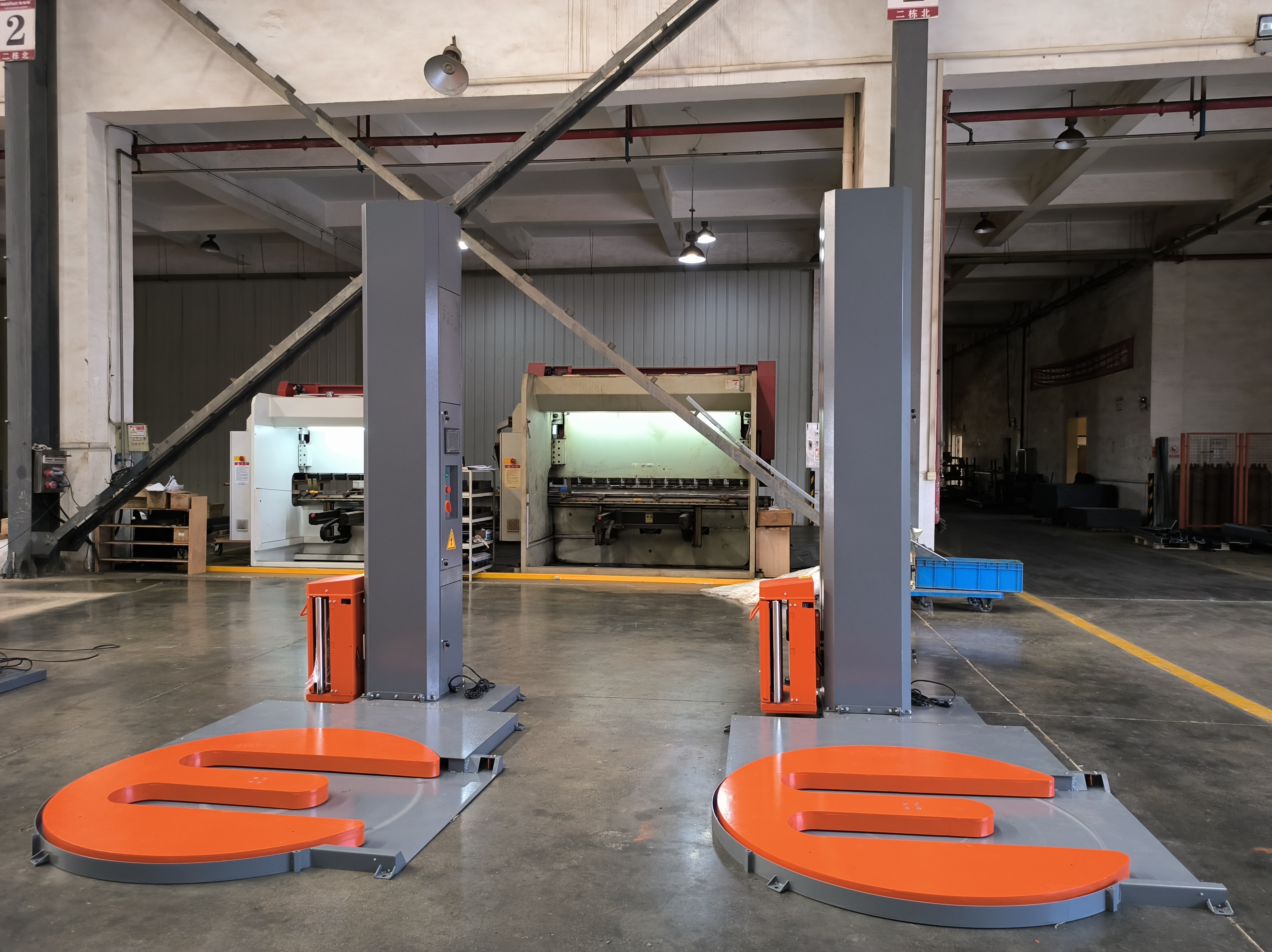

MP206-M M-type rotary table(图1)

The MP206-M is widely used for wrapping heavy palletized goods in industries such as building materials,

chemicals, hardware and large home appliances, effectively protecting goods from dust, moisture and toppling.

Featuring a modular design for easy maintenance, it also supports customization of turntable diameter,

wrapping height and other parameters to meet diverse production needs,

helping enterprises reduce labor costs and material consumption,

and achieve cost reduction and efficiency improvement in packaging processes

With a robust heavy-duty frame and industrial-grade components,

it delivers 24/7 trouble-free operation even in high-volume production environments.

Backed by tens of thousands of successful installations across the globe,

it is a proven workhorse you can rely on for years of continuous service

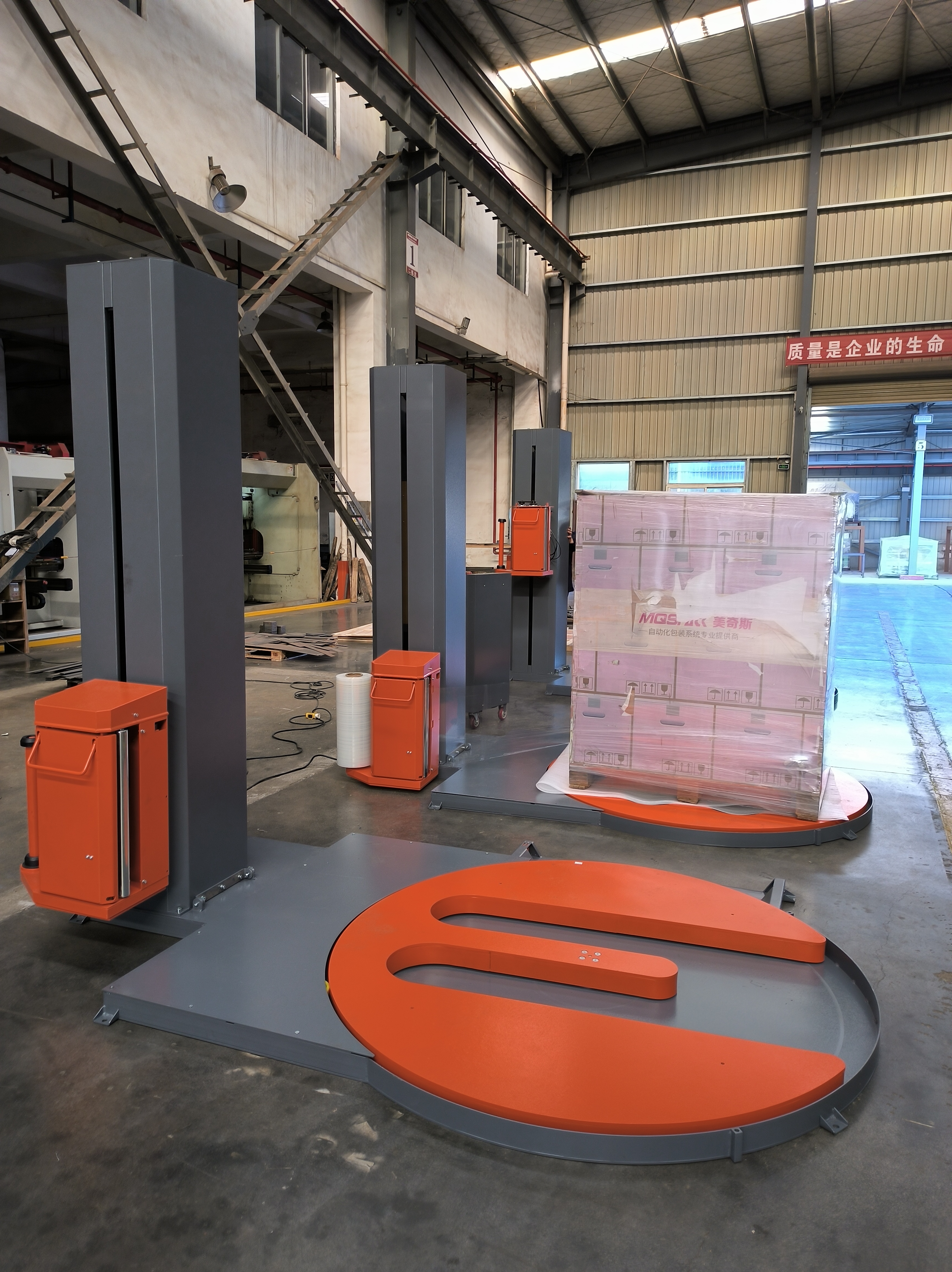

MP206-M M-type rotary table(图1)

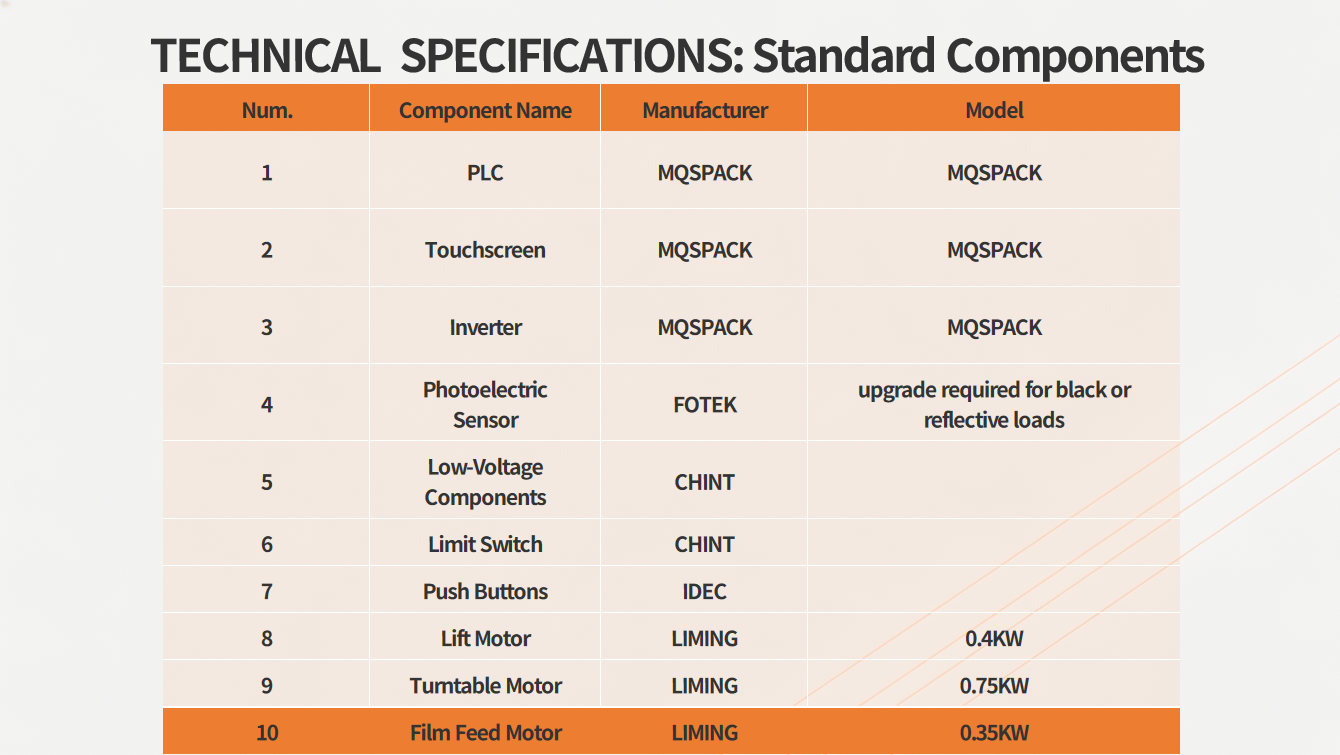

MP206-M M-type rotary table(图3)

MP206-M M-type rotary table(图3)

MP206-M M-type rotary table(图5)

MP206-M M-type rotary table(图5)

MP206-M M-type rotary table(图6)


 Product Parameters

Loading Weight:

≤2000KG


Power:

1.5KW

Turntable Speed:

0-15rpm/min,speed variable,turntable soft start & soft stop


Machine voltage:

220V,50/60HZ,20A

Wrapping Height:

2100mm、2400mm、2600mm


Machine Weight:

600KG

Turntable Diameter:

1500mm/1650mm/1800mm


Dimensions:

2565*1500*2535mm

Pre tensioning ratio:

200%


Control:

PLC programmable control

Carriage Speed:

3m/min


Working Mode:

auto/manual

Packing Speed:

20-40 pallets/h






MP206 Constant tension pre stretching winding packaging machine(图1)
