  • MP206CR-P Capping
  • Consistent Tension System

    Powered Pre-Stretch Carriage (Up to 200% Ratio)

    Intelligent Touch Screen Control

    Safety Protection Device Under Carriage

    Dual-Chain Structure Column

    Automatic Load Height Detection

    Integrated Capping Device

    Wide range of applications, with tens of thousands of successful cases

    ✅Low consumption & high efficiency, ideal for cost saving

    Smooth and quiet film frame lifting, low operating noise



  • Contact us Whatsapp+86 18071703507
Product details Product parameters Drawing size

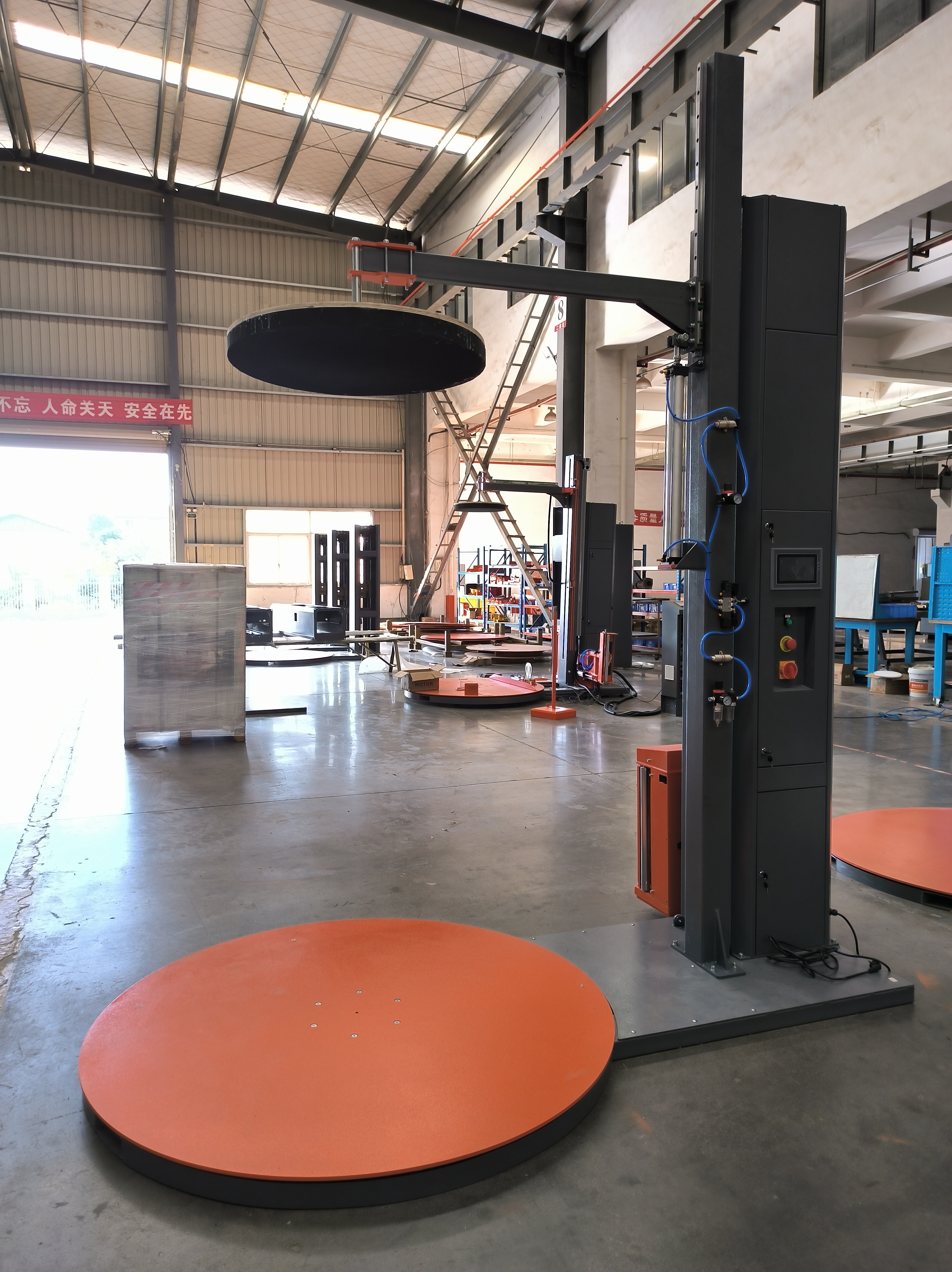

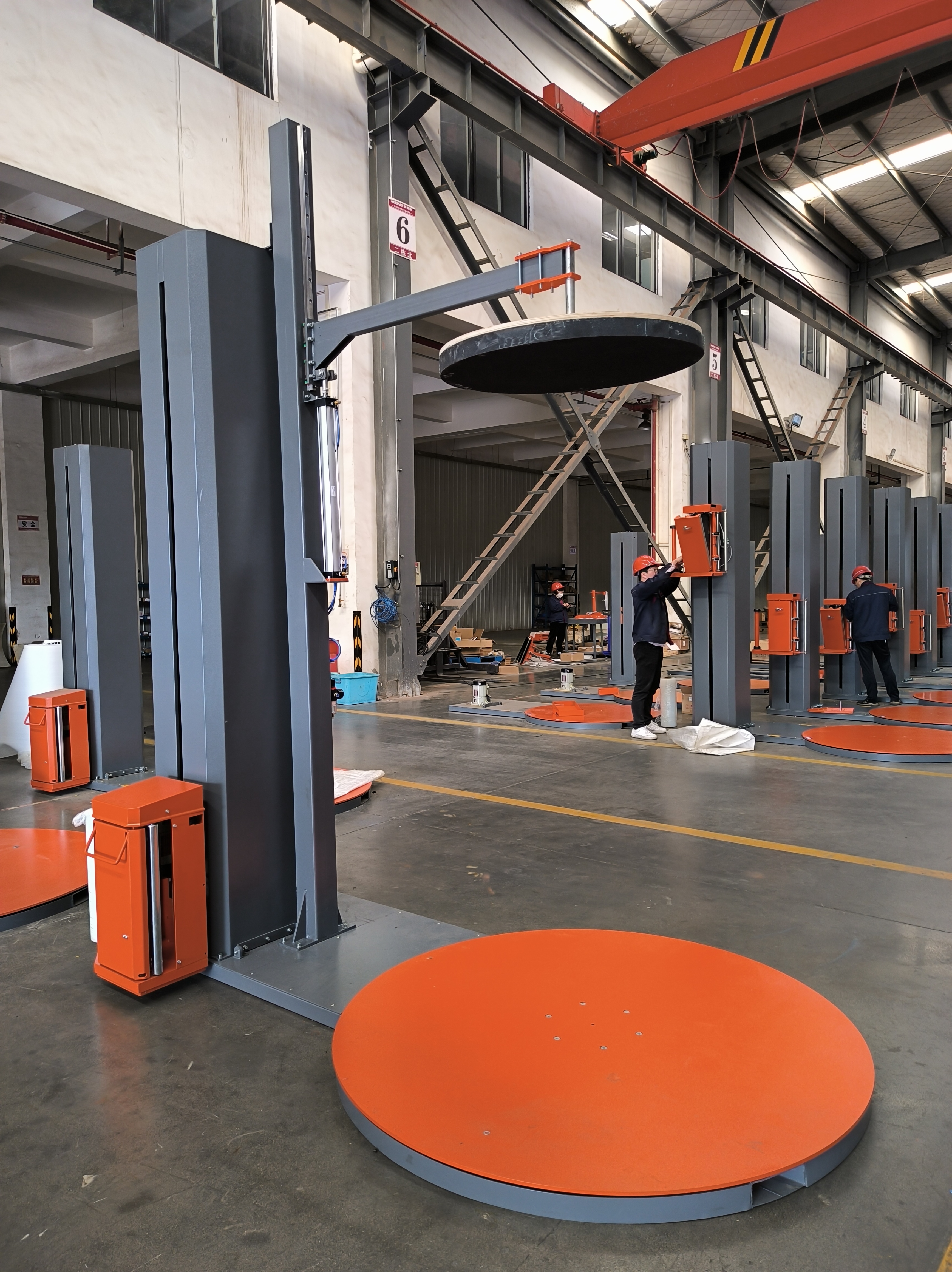

The MQSPACK MP206CR-P is a capping type powered pre-stretch stretch wrapper specially designed for light,

soft and unstable palletized goods. Integrating a capping device based on the standard pre-stretch wrapper,

it balances material savings and load stability, making it an ideal choice for packaging unstable loads.

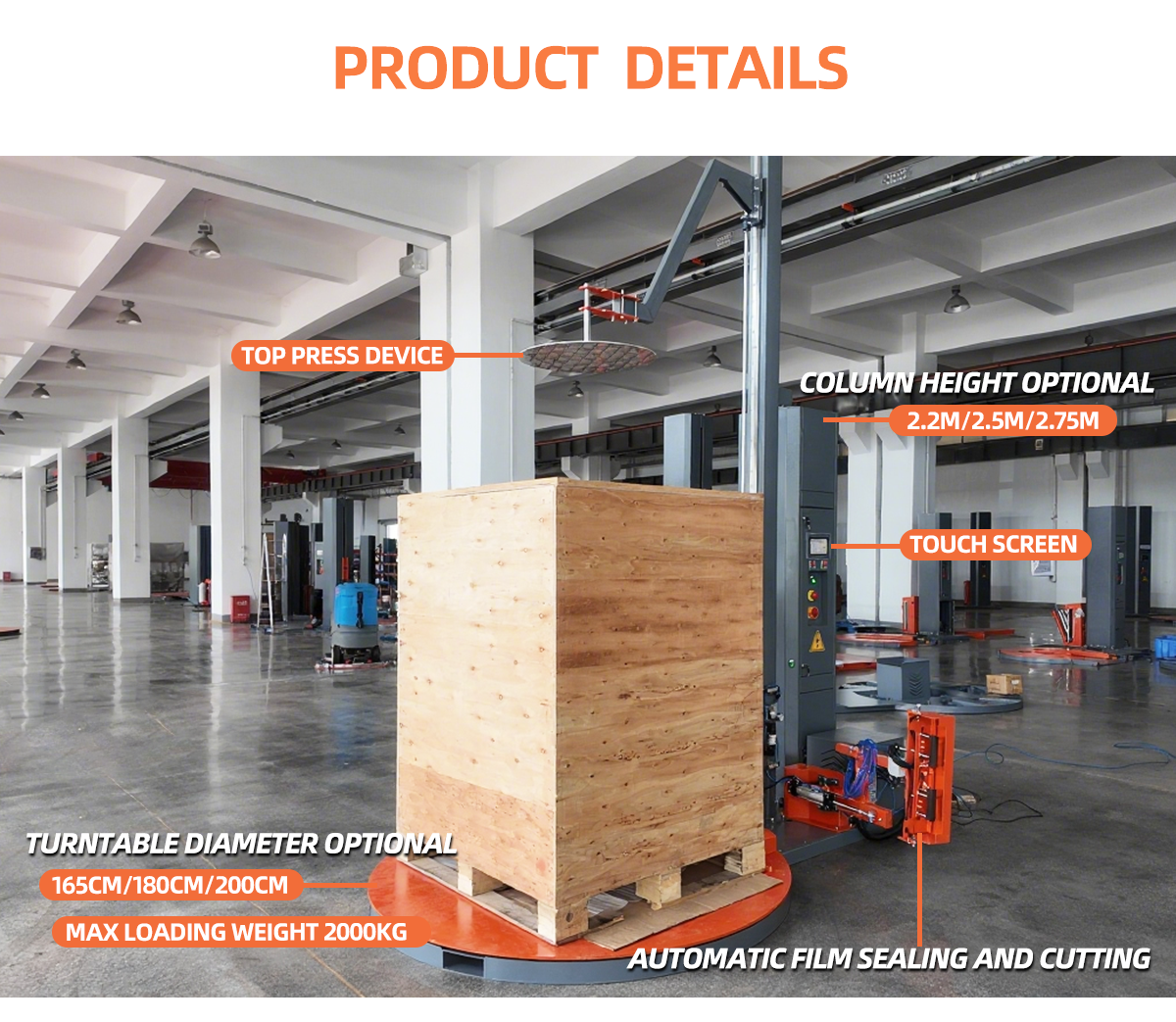

MP206CR-P Capping(图1)

The MP206CR-P is widely used for wrapping light, soft and unstable palletized goods in industries such as food & beverage,

home appliances, textiles and chemicals, effectively protecting goods from dust, moisture and toppling.

Featuring a modular design for easy maintenance, it also supports customization of capping pressure,

turntable diameter, wrapping height and other parameters to meet diverse production needs,

helping enterprises reduce labor costs and material consumption,

and achieve cost reduction and efficiency improvement in packaging processes

With a robust heavy-duty frame and industrial-grade components,

it delivers 24/7  trouble-free operation even in high=volume production enviroments

Backed by tens of thousands of successful installations across the globe,

it is a proven workhorse you can rely on for years of continuous service.

MP206CR-P Capping(图1)

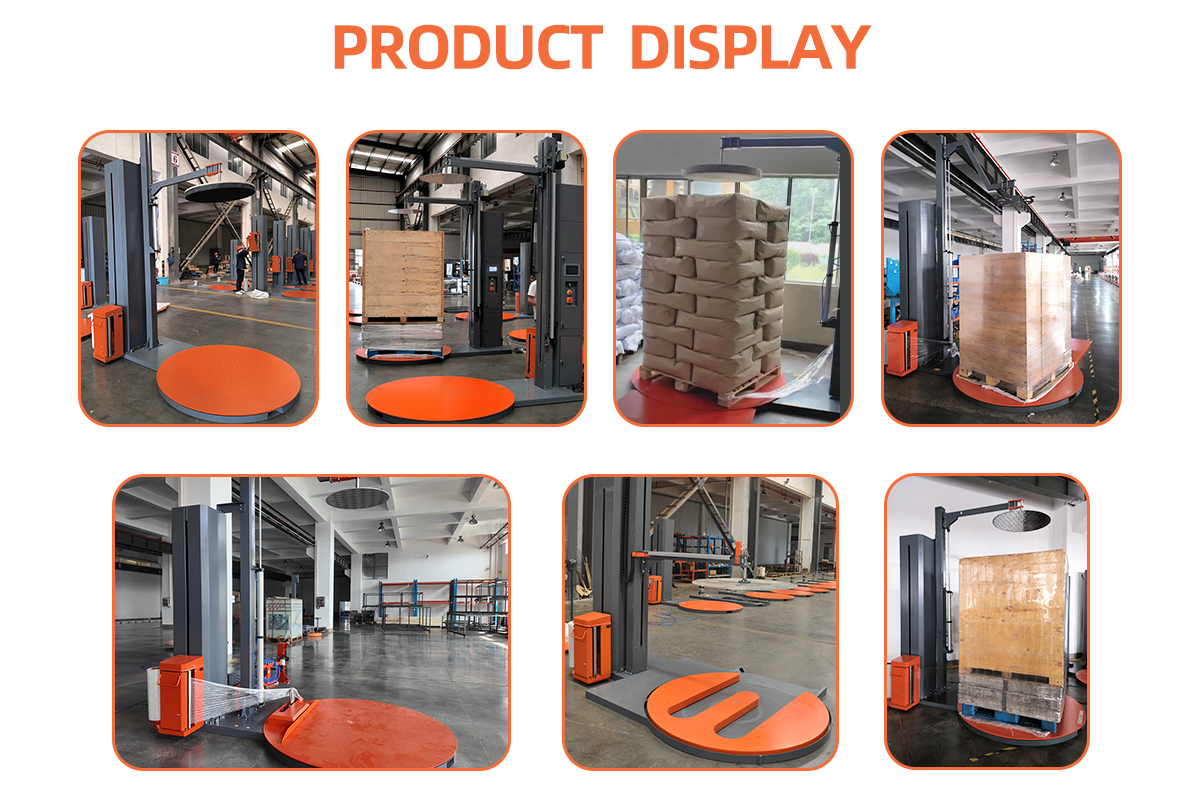

MP206CR-P Capping(图2)

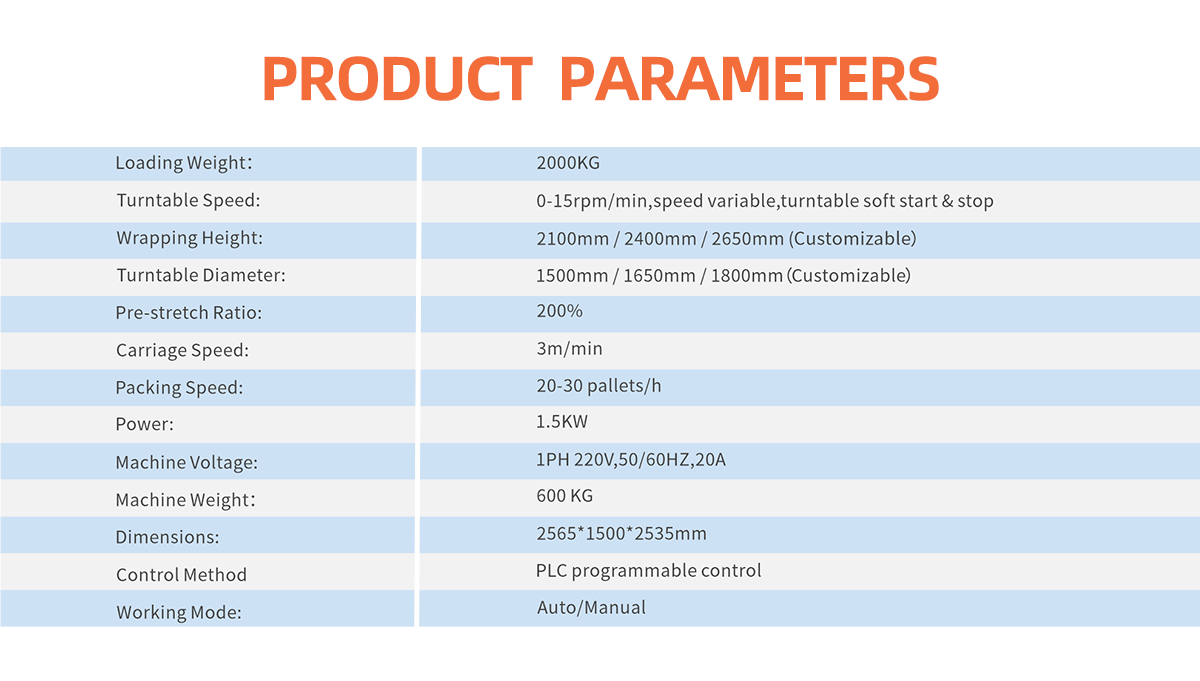

MP206CR-P Capping(图3)

MP206CR-P Capping(图4)

MP206CR-P Capping(图5)

 Product Parameters

Loading Weight:

≤2000KG


Power:

1.5KW

Turntable Speed:

0-15rpm/min,speed variable,turntable soft start & soft stop


Machine voltage:

220V,50/60HZ,20A

Wrapping Height:

2100mm、2400mm、2600mm


Machine Weight:

600KG

Turntable Diameter:

1500mm/1650mm/1800mm


Dimensions:

2565*1500*2535mm

Pre tensioning ratio:

200%


Control:

PLC programmable control

Carriage Speed:

3m/min


Working Mode:

auto/manual

Packing Speed:

20-30 pallets/h

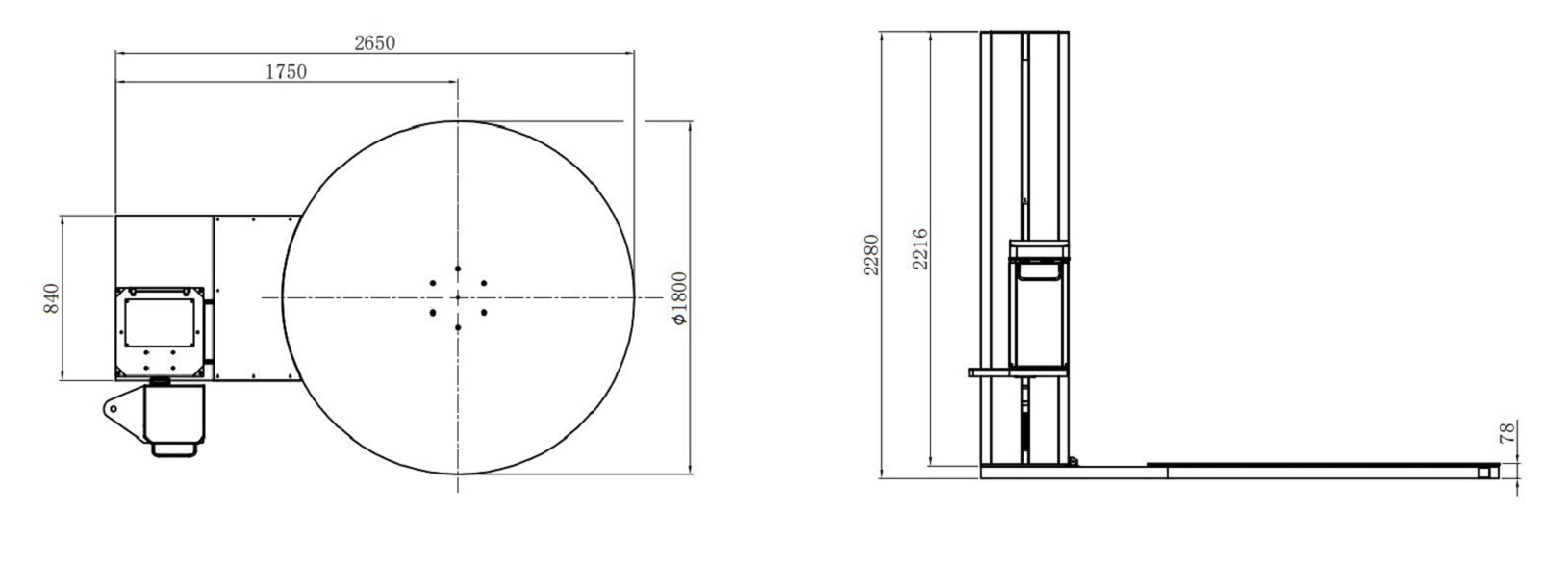

MP206 Constant tension pre stretching winding packaging machine(图1)
