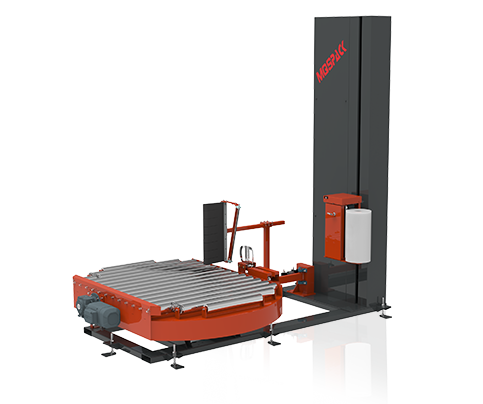

MP303B Fully automatically conveyorized pallet wrapper
· The film wrapping mechanism automatically closes, breaks, and breaks the mucous membrane
·  Slewing bearing turntable, stable and reliable, without noise
·  Dynamic pre stretching membrane frame, pre stretching up to 150%
·  Intelligent touch screen, intuitive and easy to understand operation
·  Photoelectric induction, automatic sensing of cargo height, more intelligent
·  Equipped with a brush/rubber film brushing mechanism, the winding film perfectly
Contact us Whatsapp+86 18071703507

Product details Product parameters Drawing size

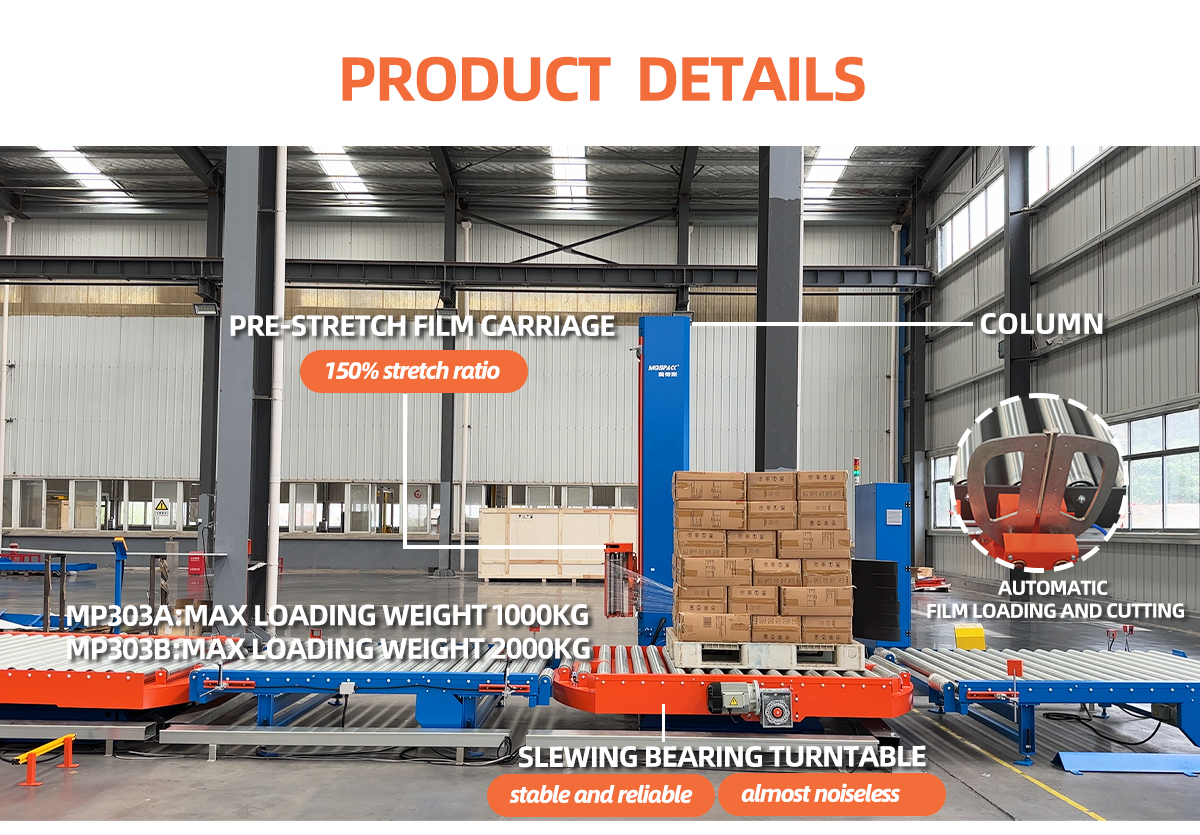

MP303B fully auto conveyorized pallet wrapper(图1)

MP303B fully auto conveyorized pallet wrapper(图2)

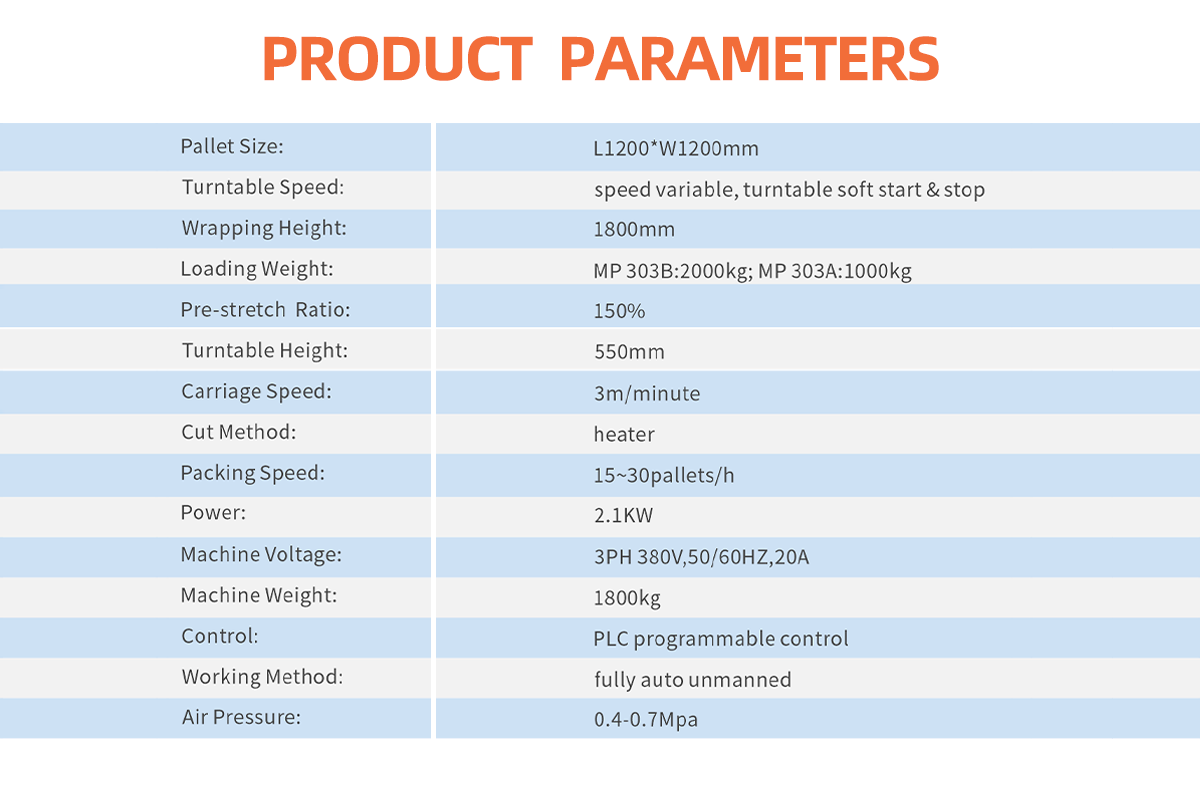

MP303B fully auto conveyorized pallet wrapper(图3)

MP303B fully auto conveyorized pallet wrapper(图4)

MP303B fully auto conveyorized pallet wrapper(图5)

Product Parameters
Pal let Size:	L（800-1200）mm*W(800-1200)mm	Power	2.1KW
Tumtable Speed:	0-15rpm/min，speed variable, turntable soft start & soft stop	Machine voltage	220V,50/60HZ,20A
Wrapping Height:	2100mm	Machine Weight	1800kg
Loading Weight：	MP303A:1000kg;MP303B:2000kg	Control	PLC programmable control
Pre tensioning ratio：	150%	Working Method	fully auto unmanned
Turntable Height：	456mm	Air Peessuce	0.4-0.7Mpa
Carriage Speed：	3m/min	Machine Dimensions	A：277518002850mm;B:287518001950mm
Cut Method	heater	Machine Weight：	A:1200kg; B:1150kg
Packing Speed	18-25 pallets/h

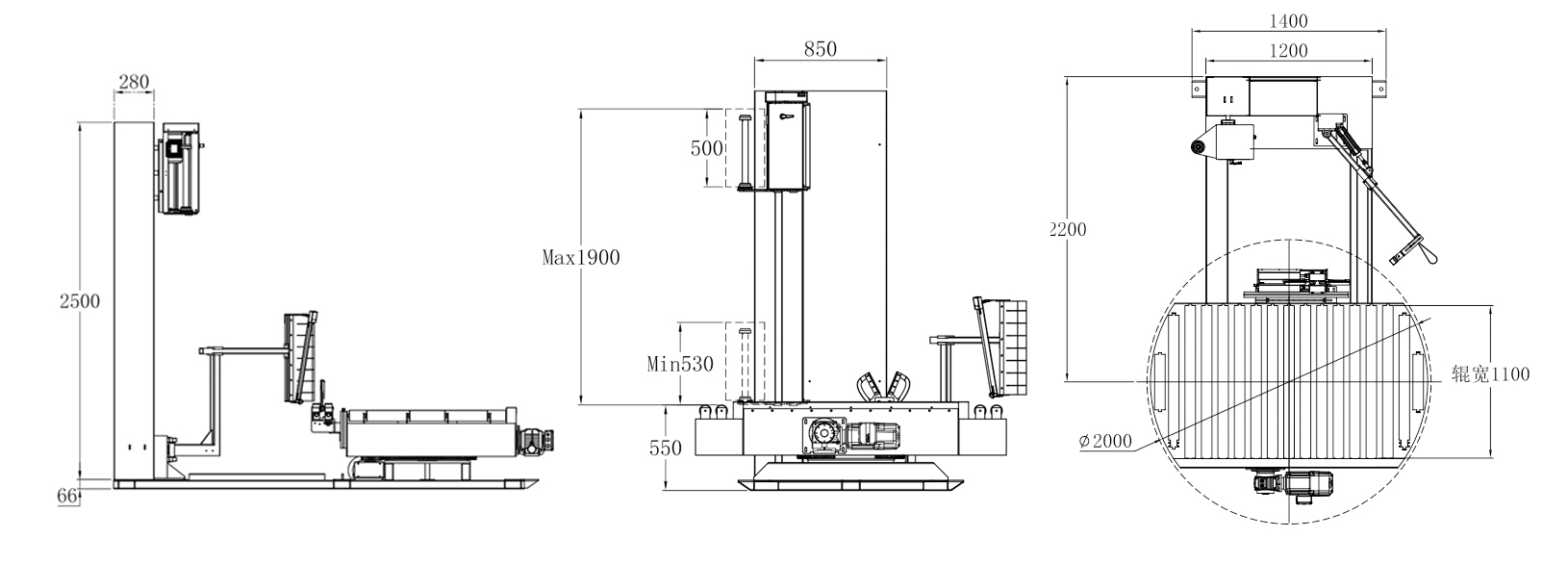

MP303 fully auto conveyorized pallet wrapper(图1)

Product display

Including semi-automatic wrapping machine,fully automatic wrapping machine,conveyorized wrapping machine,strapping machine, meet your packaging requirement
