  • MP303B Fully automatically conveyorized pallet wrapper
  • Automatic Film Clamping, Cutting and Welding

    Heavy-Duty Slewing Bearing Turntable

    Dynamic Pre-Stretch Film Carriage (Up to 150% Ratio)

    Intelligent Touch Screen Control

    Photoelectric Induction for Automatic Load Height Sensing

    Automatic Film Brushing Unit

    ✅Durable build, 24/7 stable operation

    ✅Available in turntable/inline/rotary arm/robotic types, flexible for production lines

    ✅Widely used in chemical, building materials, food, home appliances and more

    ✅Tens of thousands of successful installations, proven performance & reliable service

  • Contact us Whatsapp+86 18071703507
Product details Product parameters Drawing size

The MQSPACK MP303B is a fully automatic conveyorized pallet wrapper specially designed

for automated production lines. It can directly connect with front and rear conveyor systems

to realize unmanned continuous wrapping operations, making it an ideal choice for enterprises

to achieve fully automatic end-of-line packaging.

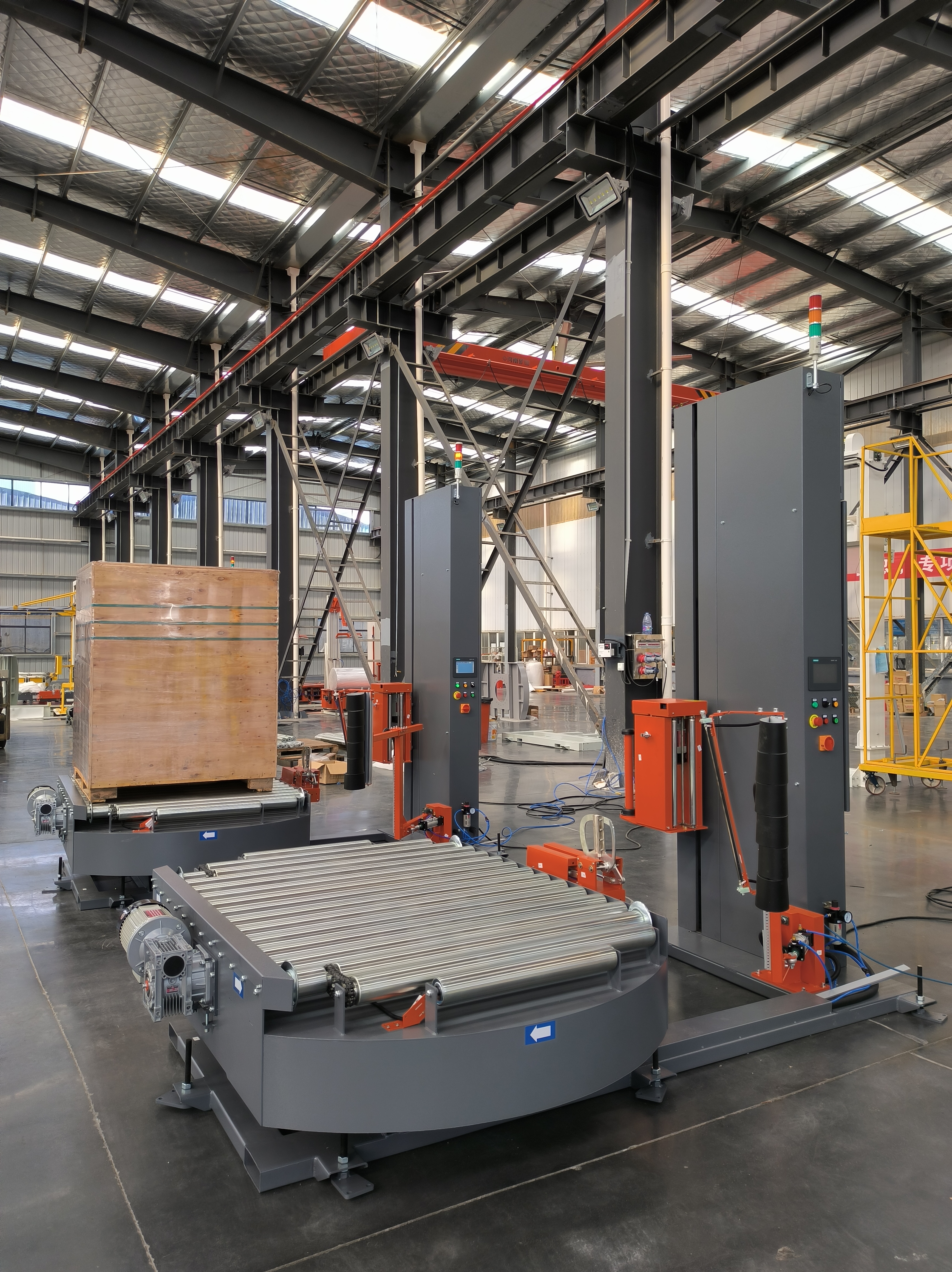

MP303B Fully automatically conveyorized pallet wrapper(图1)

The MP303B can be perfectly integrated into factory automatic production lines and warehousing

logistics sorting lines. It is widely used for online pallet wrapping needs in industries such as food & beverage,

hardware & building materials, chemical & electronics, and warehousing & logistics.

It effectively protects goods from dust, moisture and toppling,

helping enterprises achieve full-process automation in end-of-line packaging and reduce costs while improving efficiency

With a robust heavy-duty frame and industrial-grade components,

it delivers 24/7 trouble-free operation even in high-volume production environments.

Backed by tens of thousands of successful installations across the globe,

it is a proven workhorse you can rely on for years of continuous service.

MP303B fully auto conveyorized pallet wrapper(图1)

MP303B fully auto conveyorized pallet wrapper(图2)

MP303B fully auto conveyorized pallet wrapper(图3)

MP303B fully auto conveyorized pallet wrapper(图4)

MP303B fully auto conveyorized pallet wrapper(图5)


 Product Parameters

Pal let Size:

L(800-1200)mm*W(800-1200)mm


Power

2.1KW

Tumtable Speed:

0-15rpm/min,speed variable, turntable soft start & soft stop


Machine voltage

220V,50/60HZ,20A

Wrapping Height:

2100mm


Machine Weight

1800kg

Loading Weight:

MP303A:1000kg;MP303B:2000kg


Control

PLC programmable control

Pre tensioning ratio:

150%


Working Method

fully auto unmanned

Turntable Height:

550mm


Air Peessuce

0.4-0.7Mpa

Carriage Speed:

3m/min


Machine Dimensions

A:2775*1800*2850mm;B:2875*1800*1950mm

Cut Method

heater


Machine Weight:

A:1200kg; B:1150kg

Packing Speed

15-30 pallets/h
