  • MP 402D Fully AUTO ROTARY ARM WRAPPER WITH TOP SHEET DISPENSER
  • Two Working Modes Available

    Automatic Film Handling System

    150% Powered Pre-Stretch Film Carriage

    Touch Screen Parameter Setting

    Rotary Arm Home Position & High-Sensitivity Braking System

    ✅Low consumption & high efficiency, ideal for cost saving

    ✅Smooth and quiet film frame lifting, low operating noise

    ✅Automatic film cutting and covering, no manual film handling needed

    ✅Suitable for all kinds of goods in different sizes and weights

    ✅Flexible adaptation, easy integration with lines

    ✅Globally proven, trusted by thousands of clients


  • Contact us Whatsapp+86 18071703507
Product details Product parameters Drawing size

The MQSPACK MP402D is a fully automatic rotary arm wrapper integrating both wrapping and top sheet dispensing functions.

Designed for high-protection, high-cycle automated production scenarios, it supports dual-mode operation:

wrapping only or wrapping with automatic top sheet application, making it an ideal choice for enterprises to

achieve fully enclosed protection and full-process automation.

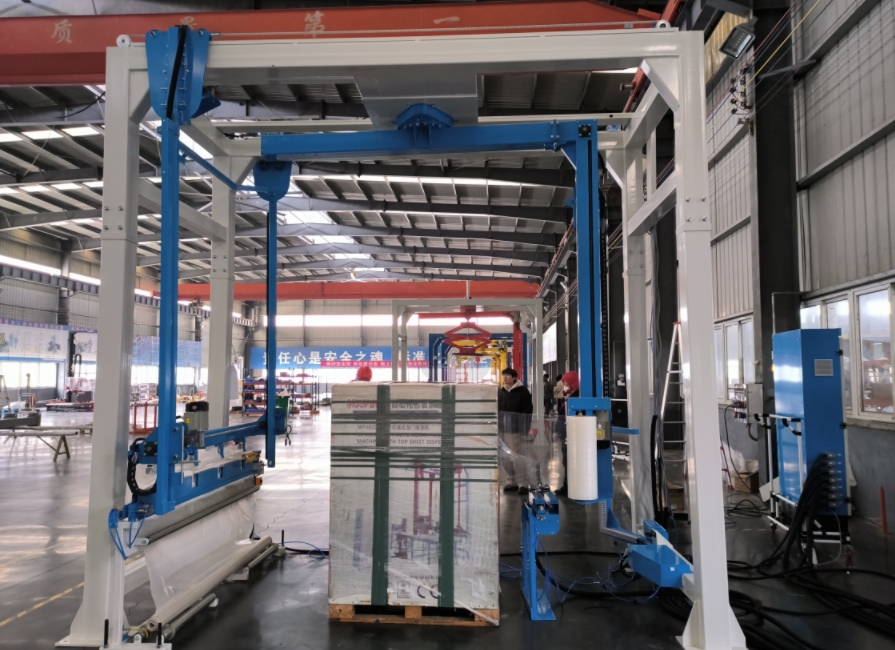

MP 402D Fully AUTO ROTARY ARM WRAPPER WITH TOP SHEET DISPENSER(图1)

The MP402D can be perfectly integrated into factory automatic production lines and warehousing logistics sorting lines.

It is widely used for online pallet wrapping needs in industries such as food & beverage, chemicals, building materials and electronics.

The top sheet mode achieves full dust and moisture protection, while the turntable-free design adapts to heavy and unstable loads.

The machine supports customization of wrapping parameters, rotary arm speed and more, helping enterprises reduce costs and improve efficiency in packaging processes

With a robust heavy-duty frame and industrial-grade components,

it delivers 24/7 trouble-free operation even in high-volume production environments.

Backed by tens of thousands of successful installations across the globe, it is a proven workhorse you can rely on for years of continuous service.

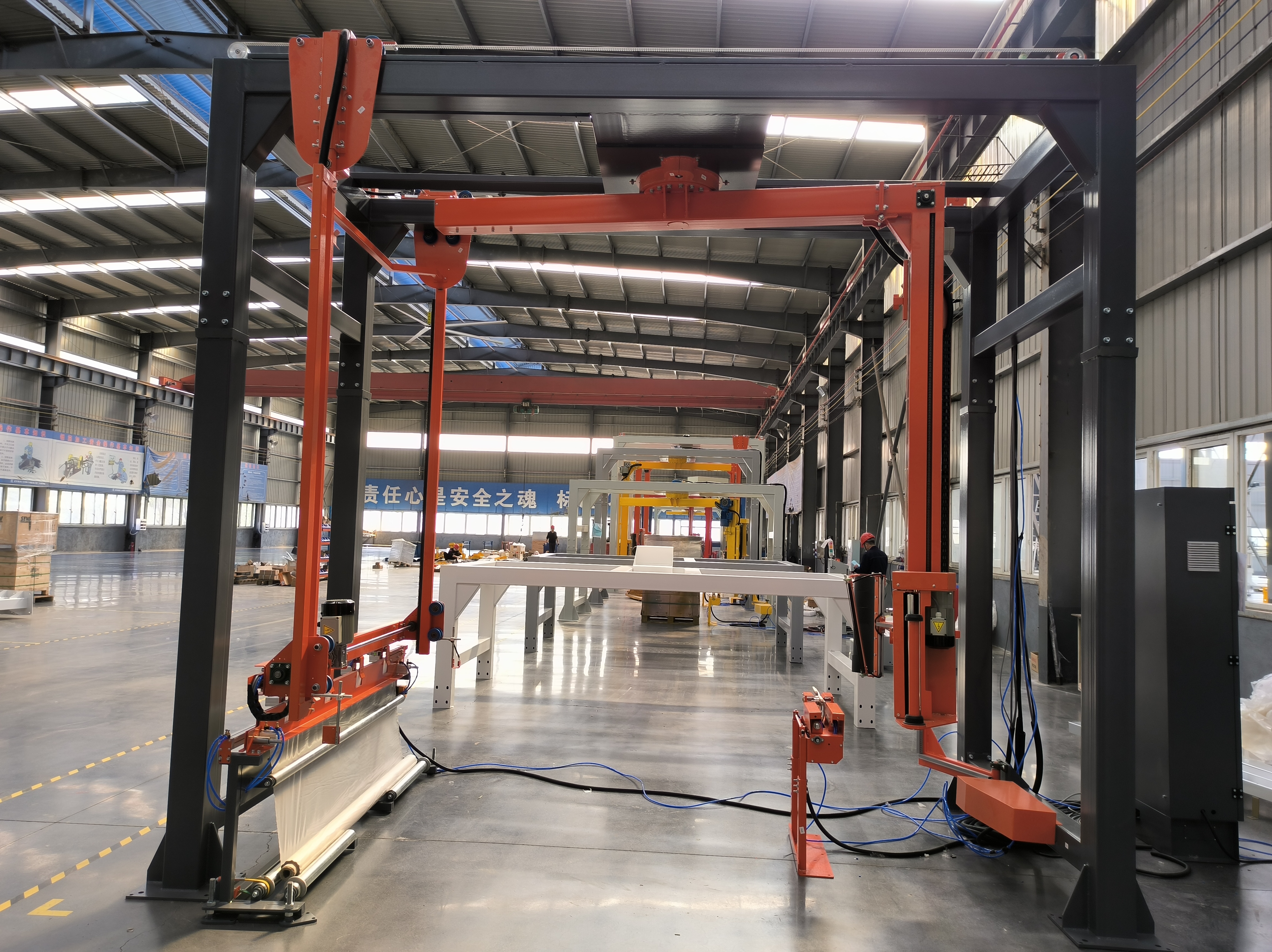

MP 402D Fully Auto Rotary Arm Wrapper with Top Sheet Dispenser(图1)

MP 402D Fully Auto Rotary Arm Wrapper with Top Sheet Dispenser(图2)

MP 402D Fully Auto Rotary Arm Wrapper with Top Sheet Dispenser(图3)

MP 402D Fully Auto Rotary Arm Wrapper with Top Sheet Dispenser(图4)

MP 402D Fully Auto Rotary Arm Wrapper with Top Sheet Dispenser(图5)

 Product Parameters

Rotation Speed:

0-20rpm/min,variable


Power:

2.5KW+conveyor line

Pallet Size:

W(500-1200)mm*L(500-1200)mm


Conveyor Height:

450mm

Wrapping Height:

1800mm


Conveyor Speed:

0-12m/min

Pre tensioning ratio:

150%


Machine voltage:

380V,50/60HZ,20A

Carriage Speed:

3m/min


Machine Weight:

1800kg

Top Sheet Pulling Speed:

12m/min


Machine Dimensions:

3200*3220*3120mm

Top Sheet Size:

1800mm,length adjustable


Control:

PLC programmable control、touch screen

Cut Method:

Cutting by thermal fuse


Working Method:

Fully auto unmanned

 Packing Speed:

20-40 pallets/h


Air Peessuce:

0.4-0.7Mpa
