Your location ： HOME > PRODUCTS > Robot wrapping machine > MB500 robot wrapping machine

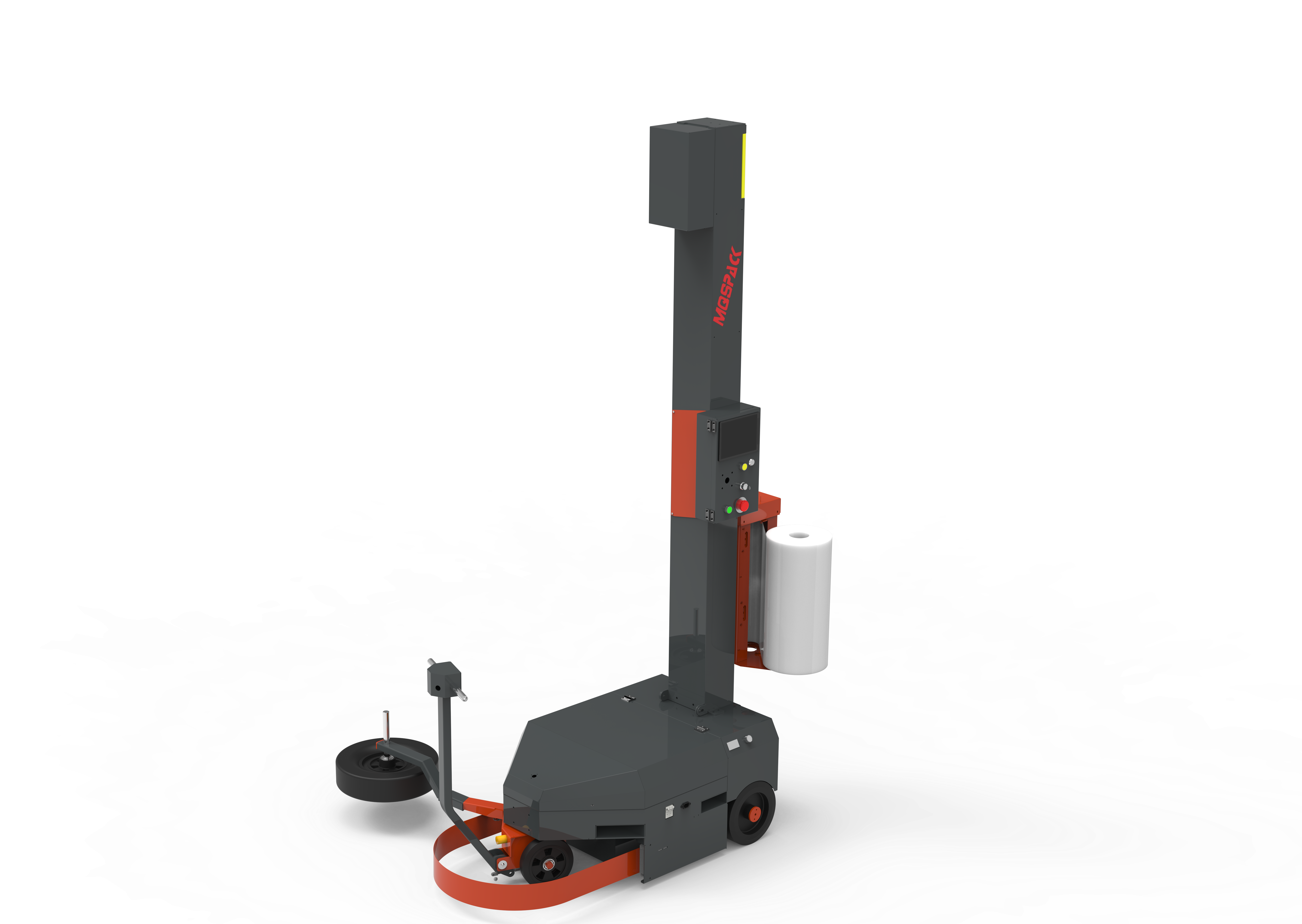

MB500 robot wrapping machine
· Compact, flexible, and more convenient to use
·  Intelligent touch screen, intuitive and easy to understand operation
·  Dynamic pre stretching membrane frame, pre stretching up to 250%
·  The equipment automatically packages, automatically measures the height of items, and the number of packaging layers can be set
Contact us Whatsapp+86 18071703507

Product details Product parameters Drawing size

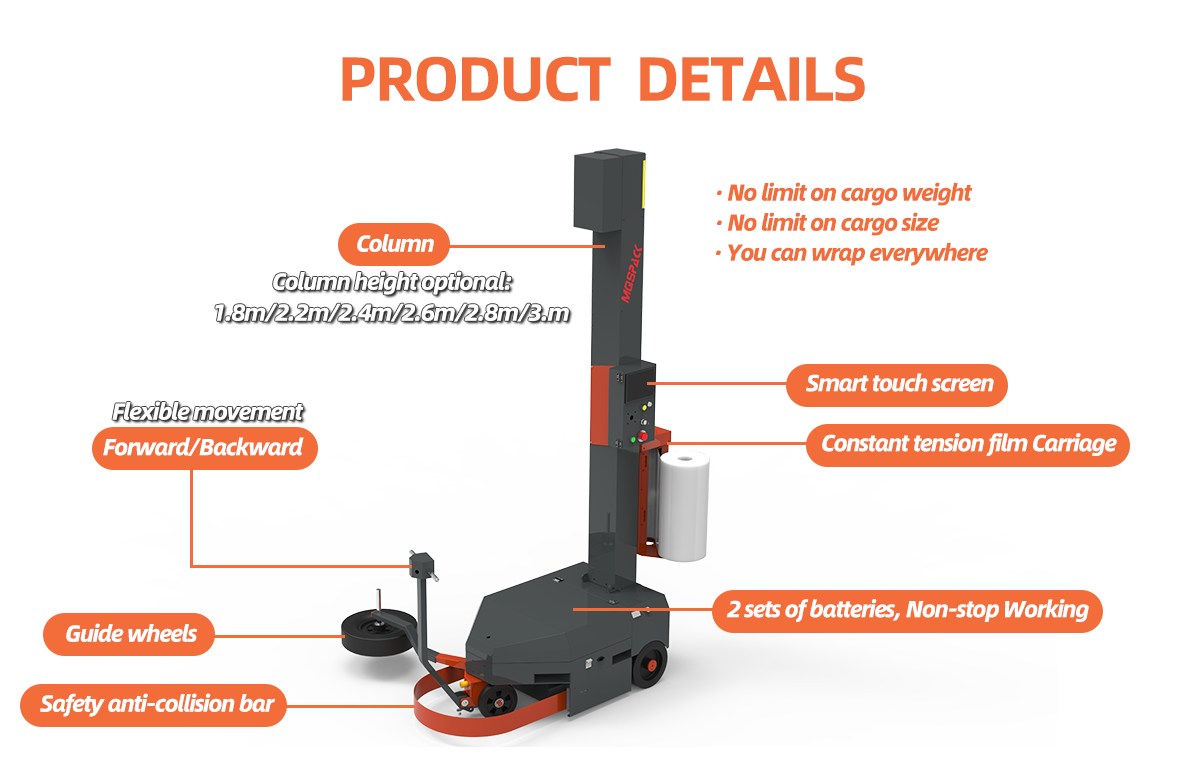

MB500 robot wrapping machine(图1)

MB500 robot wrapping machine(图2)

MB500 robot wrapping machine(图3)

MB500 robot wrapping machine(图4)

MB500 robot wrapping machine(图5)

Product Parameters
load weight：	unlimited	Packing Speed：	20-30 pallets/h
Wrapping speed：	0-10rpm/min，variable	Power	1.5KW
Packing height：	1800mm、2000mm、2400mm	Machine voltage	220V,50/60HZ,20A
Pre-stretch rate：	200%\250%	Control	PLC programmable control
Carriage Speed:	1.5-5.5m/min

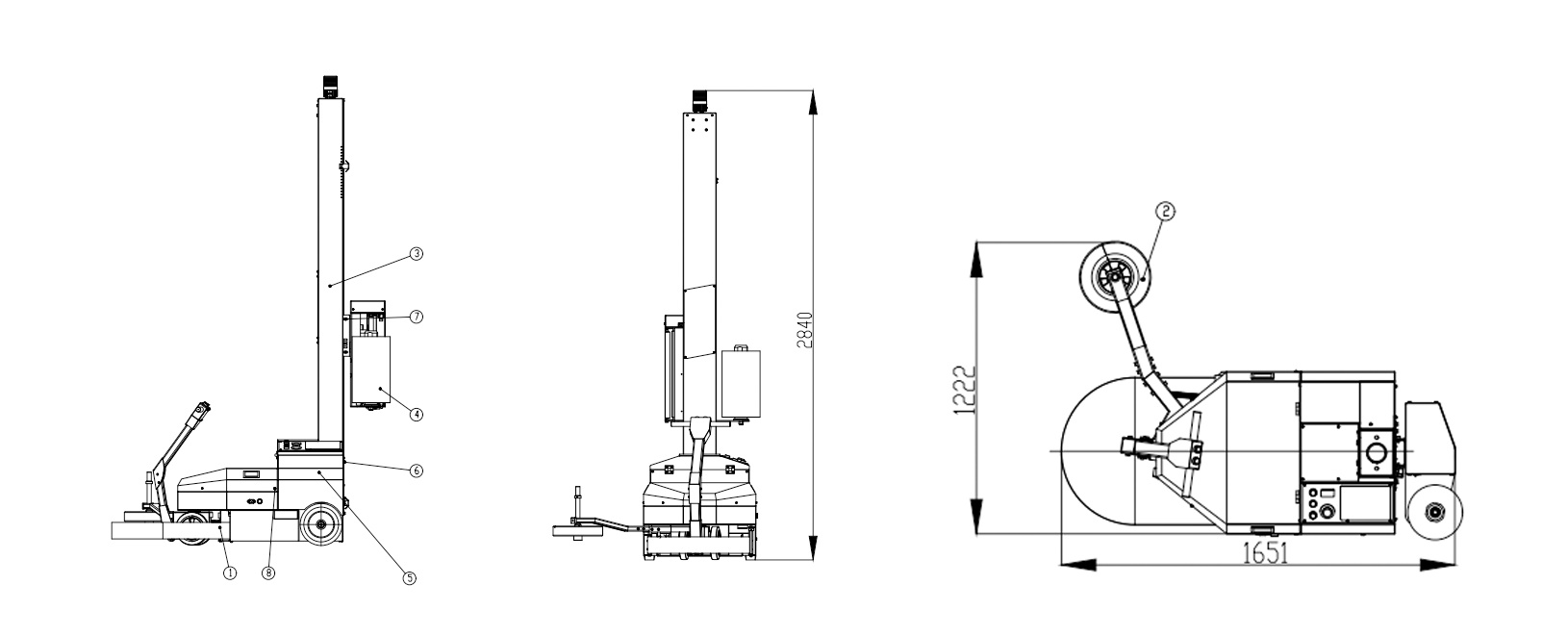

MB500 self-propelled winding machine(图1)

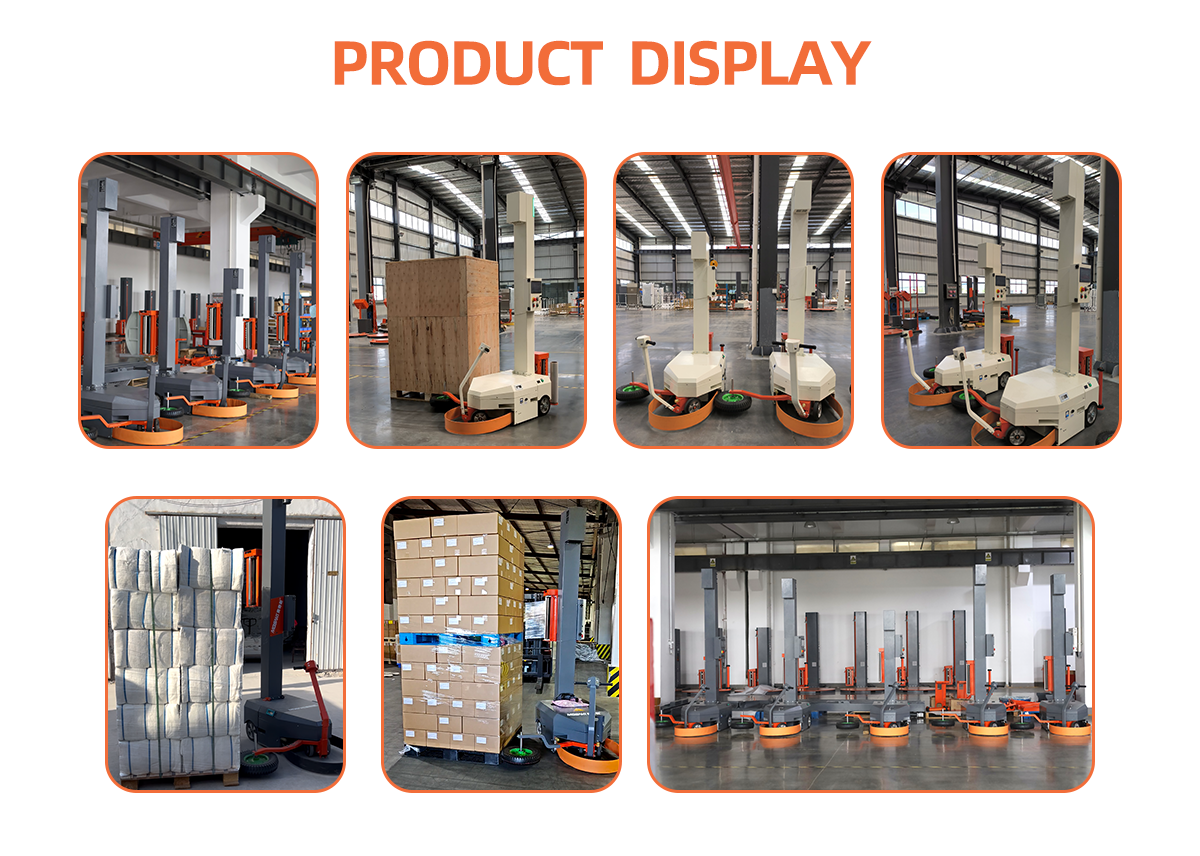

Product display

Including semi-automatic wrapping machine,fully automatic wrapping machine,conveyorized wrapping machine,strapping machine, meet your packaging requirement
